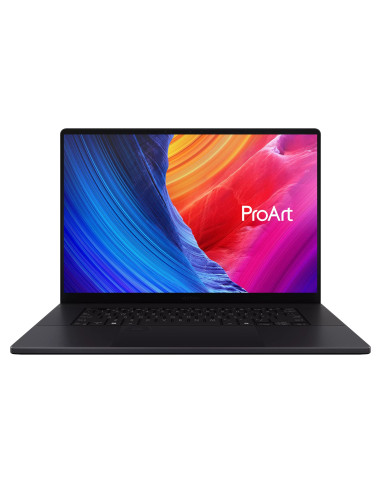

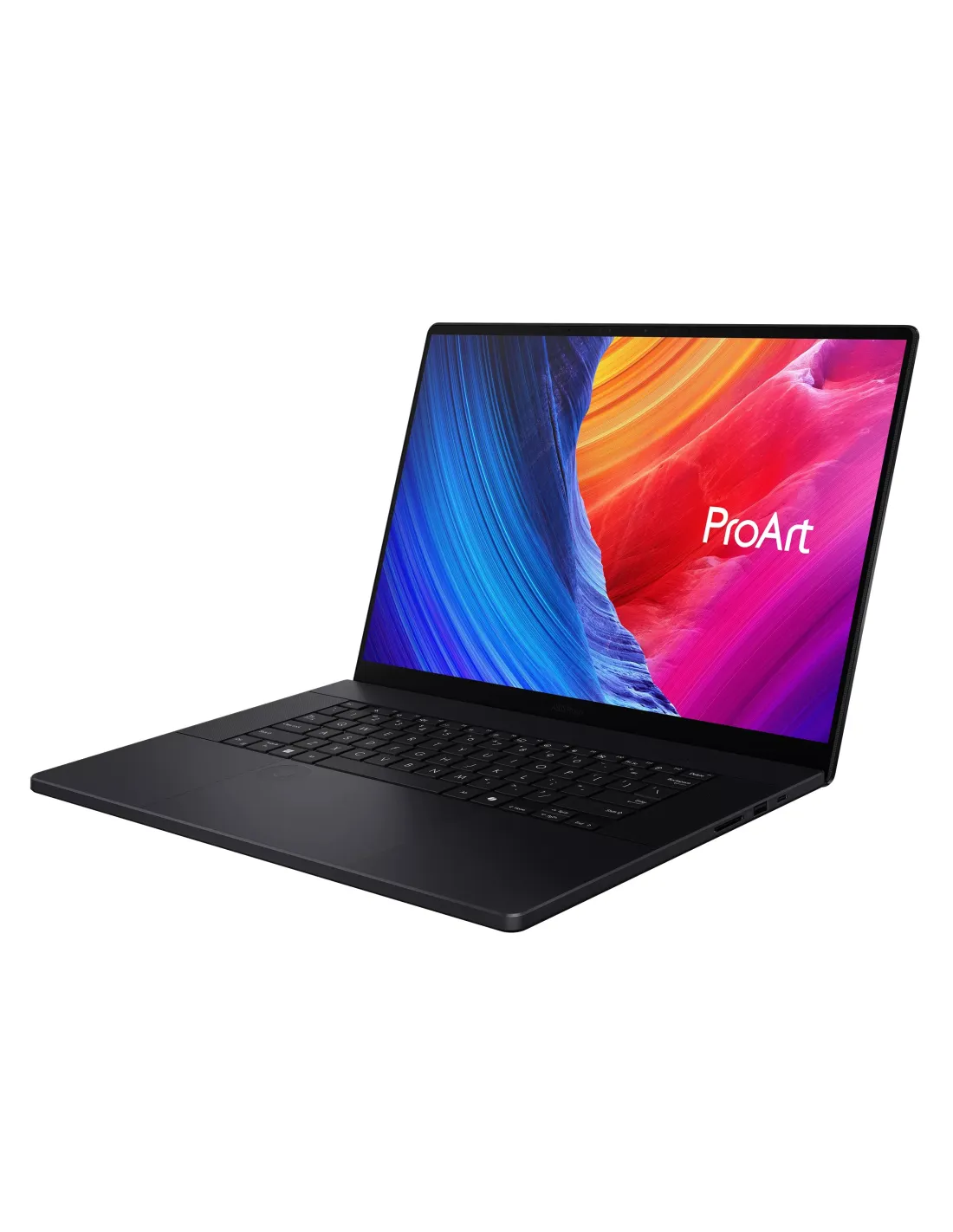

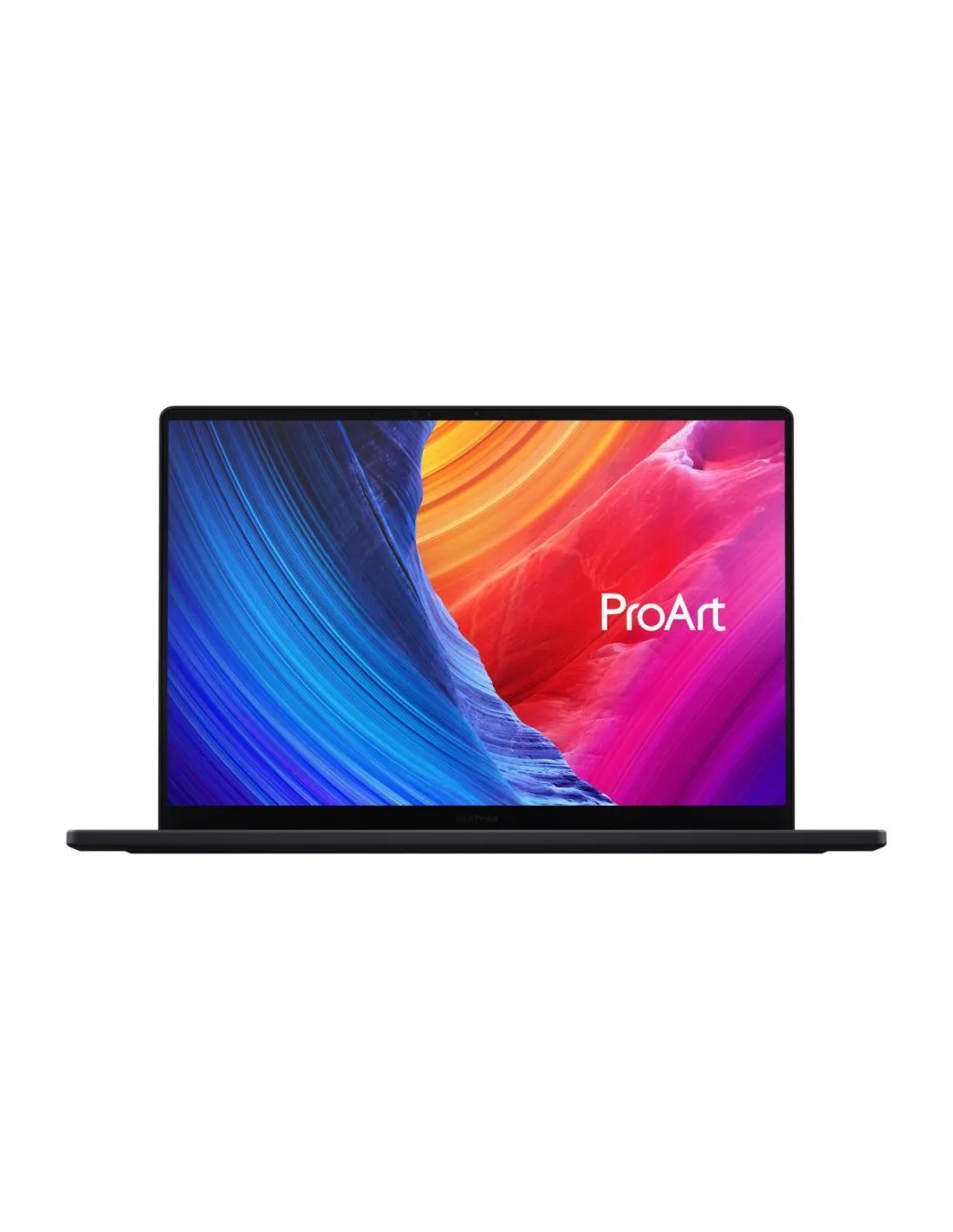

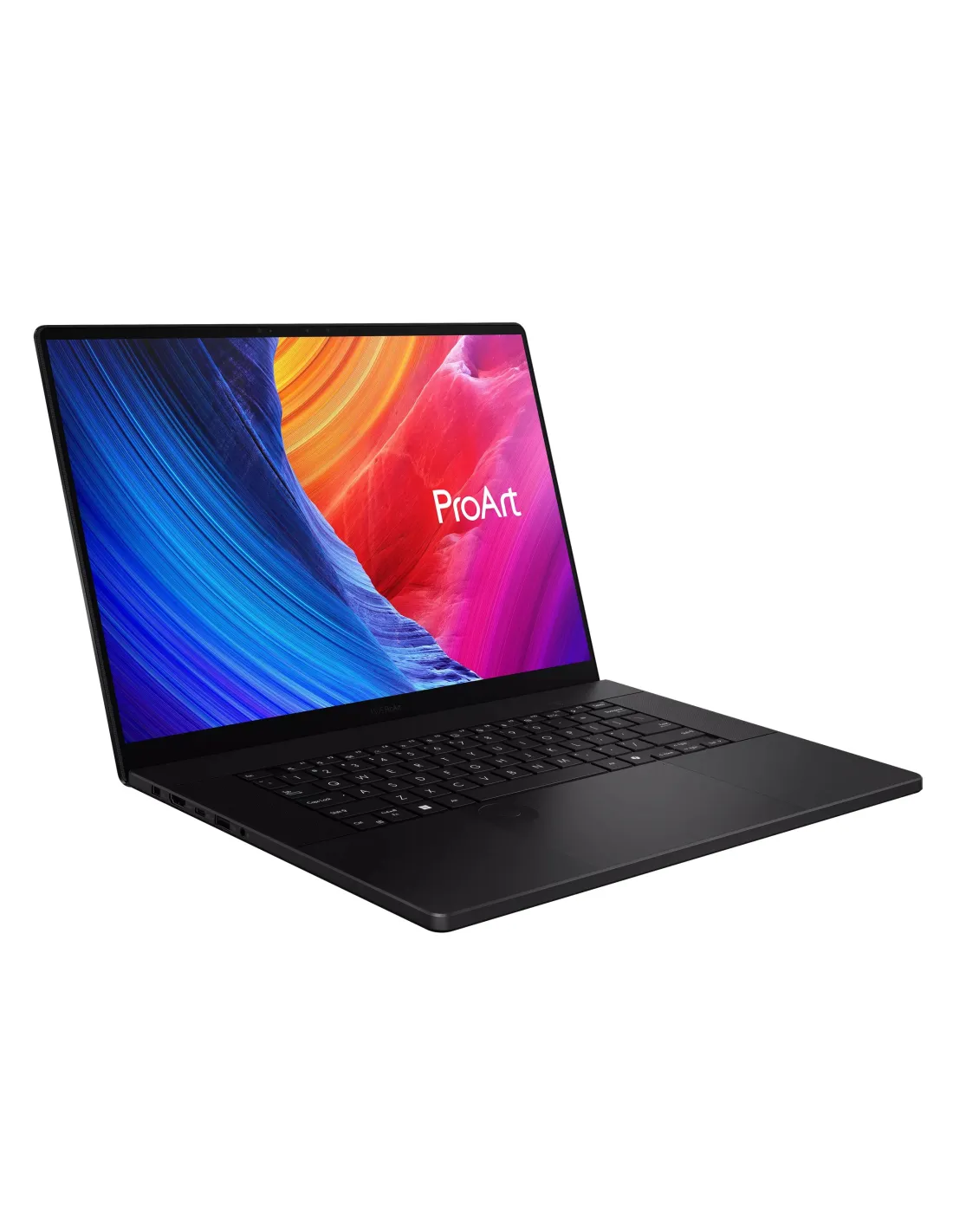

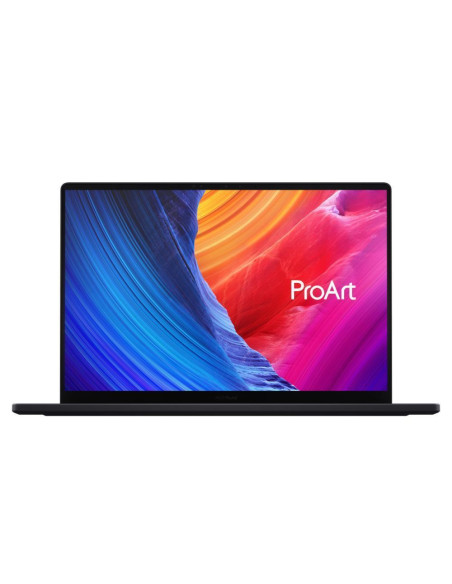

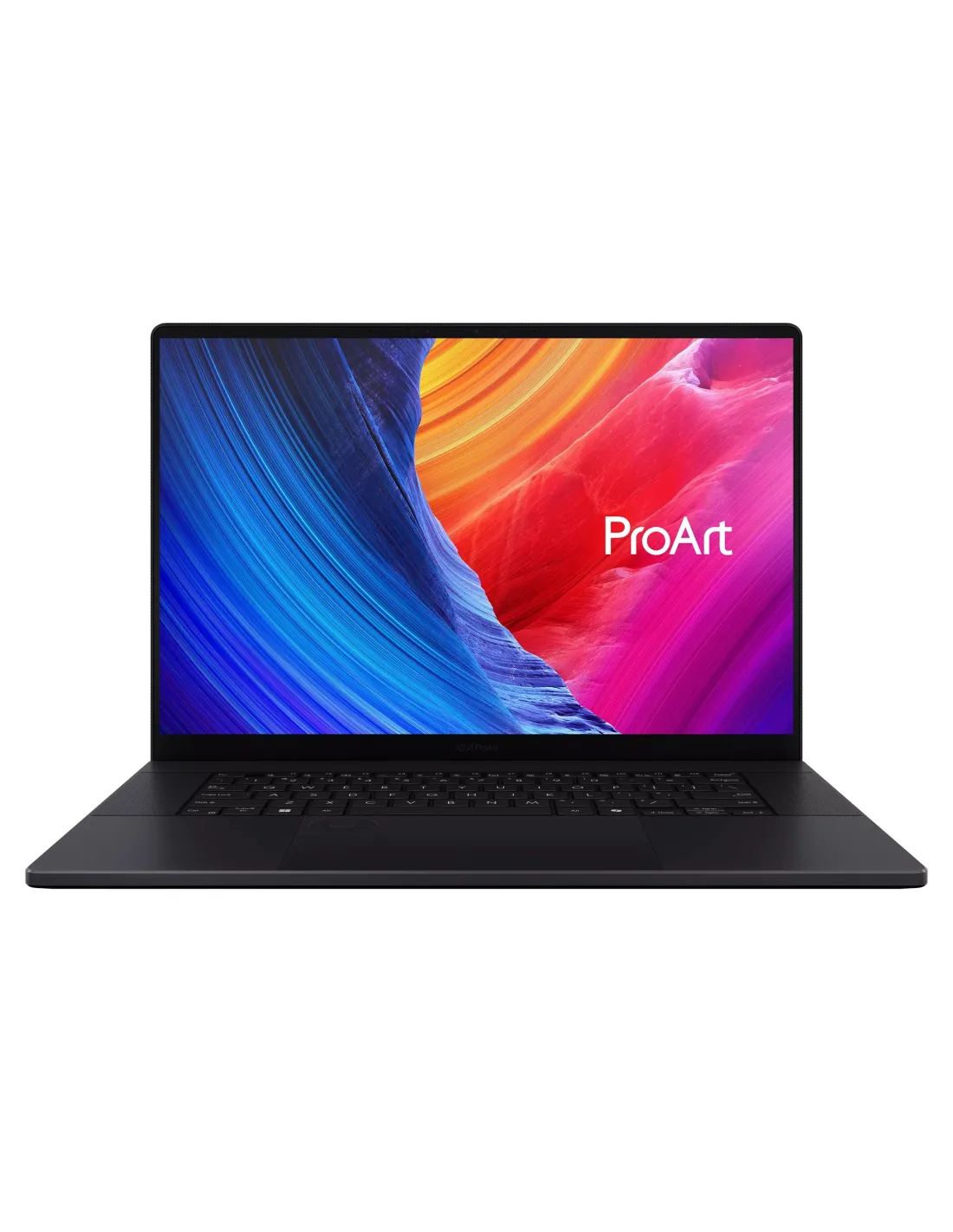

Model H7606WW / 90NB17F1-M001C0
Marketing Name ProArt P16
Operating System Windows 11 Pro

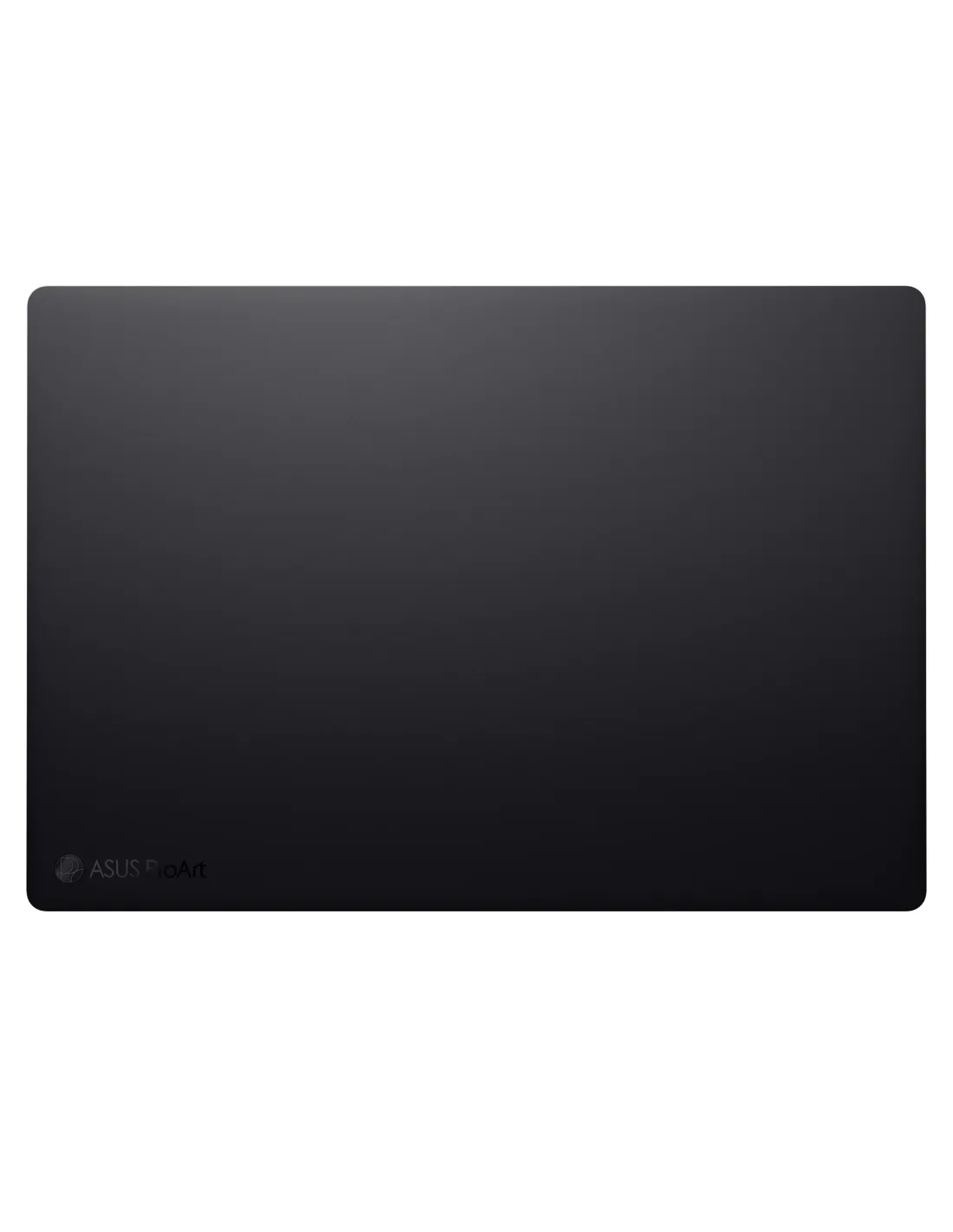

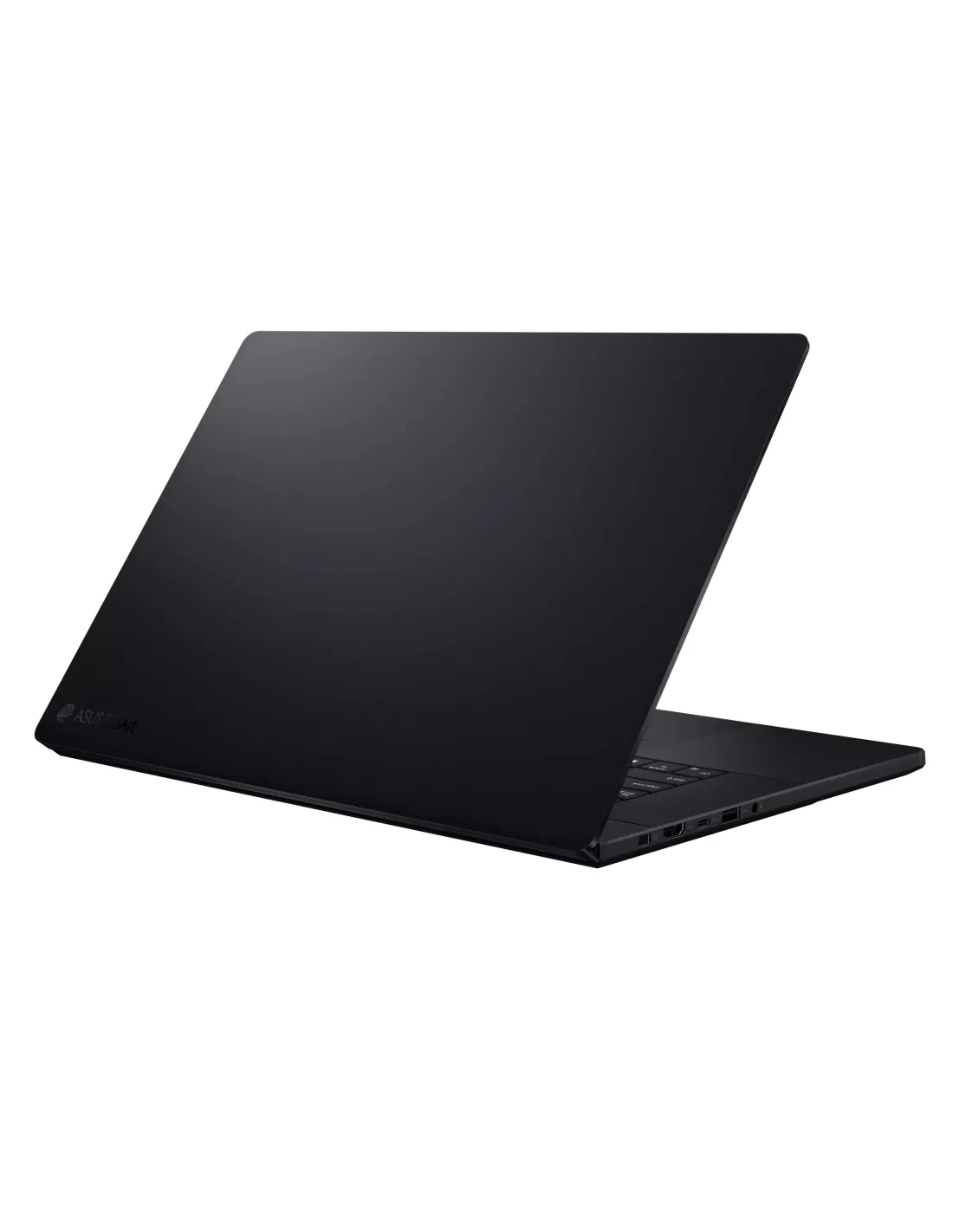

LCD cover-material Aluminum
LCD cover-color Nano Black
Top case-material Aluminum
Top case-color Nano Black
Keyboard color Black
Bottom case-material Aluminum
Bottom case-color Nano Black
Military grade US MIL-STD 810H military-grade standard
Touch Panel Touch screen
Panel Size 16.0-inch
Resolution 4K (3840 x 2400) OLED 16:10 aspect ratio
Response time 0.2ms response time
Refresh rate 120Hz refresh rate
Peak Brightness 1600nits HDR peak brightness
Color gamut 100% DCI-P3 color gamut
Gamut mapping Yes
Contrast ratio 1,000,000:1
VESA CERTIFIED Display HDR VESA CERTIFIED Display HDR True Black 1000
Color depth 1.07 billion colors
Pantone PANTONE Validated
Glare Glossy display
Low blue light 70% less harmful blue light
Screen-to-body ratio 88%
Stylus support With stylus support
Processor AMD Ryzen™ AI 9 HX 370 Processor 2.0GHz (36MB Cache, up to 5.1GHz, 12
cores, 24 Threads); AMD XDNA™ NPU up to 50TOPS
Discrete/Share Discrete
Intergrated GPU AMD Radeon™ 890M Graphics
Graphics NVIDIA® GeForce RTX™ 5080 Laptop GPU
Graphic Memory 16GB GDDR7
Neural Processor AMD XDNA™ NPU up to 50TOPS
Expansion Slot(includes used) 1x M.2 2280 PCIe 4.0x4 + 1x M.2 2280 PCIe 4.0x2
On board memory 64GB LPDDR5X on board
Total System Memory LPDDR5X 64GB
Storage 2TB M.2 NVMe™ PCIe® 4.0 SSD
Front-facing camera FHD camera with IR function to support Windows Hello
Wireless Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card
(*Bluetooth® version may change with OS version different.)

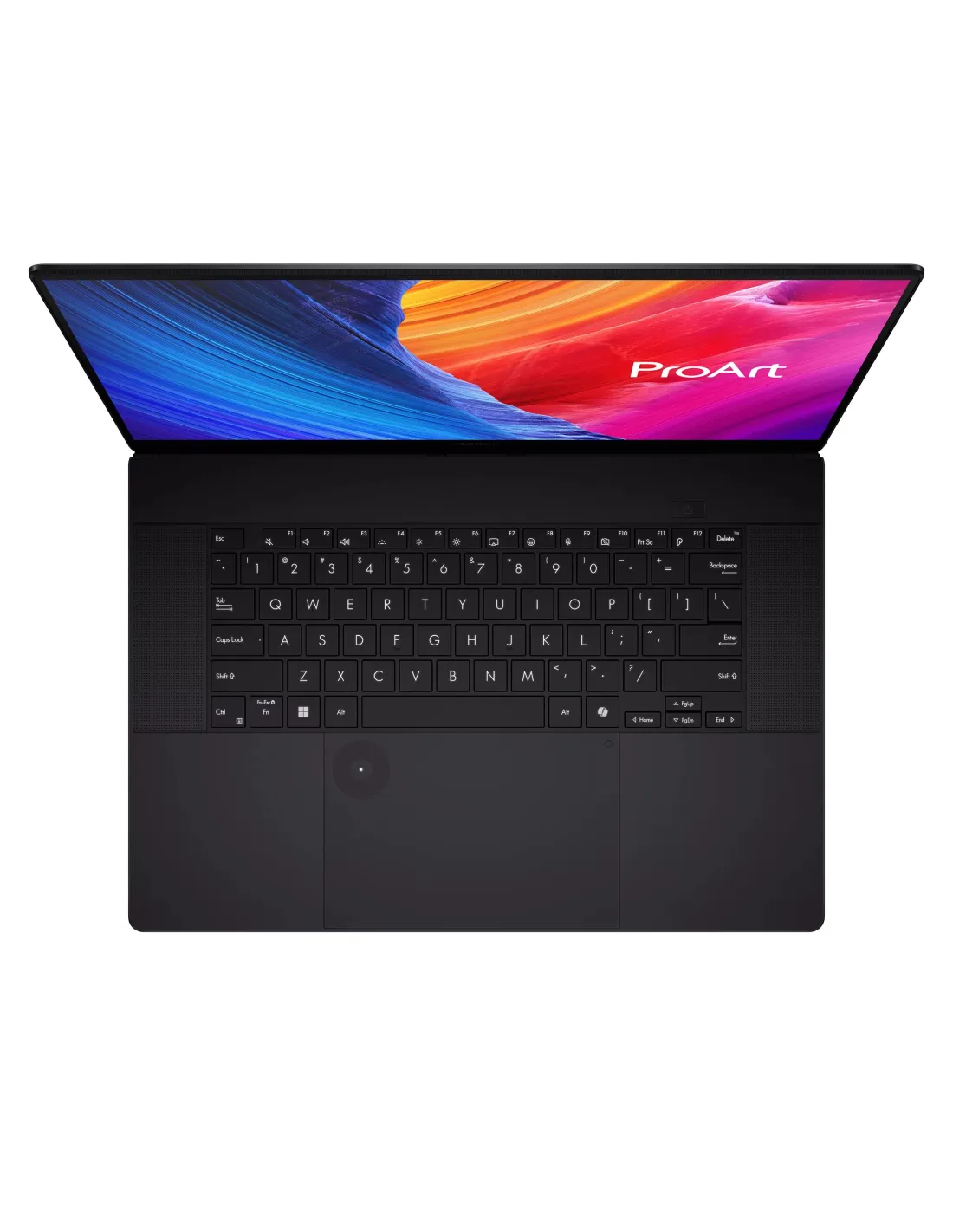

Keyboard type
Backlit Chiclet Keyboard
With Copilot key
Touchpad Precision touchpad
support DialPad
FingerPrint N/A

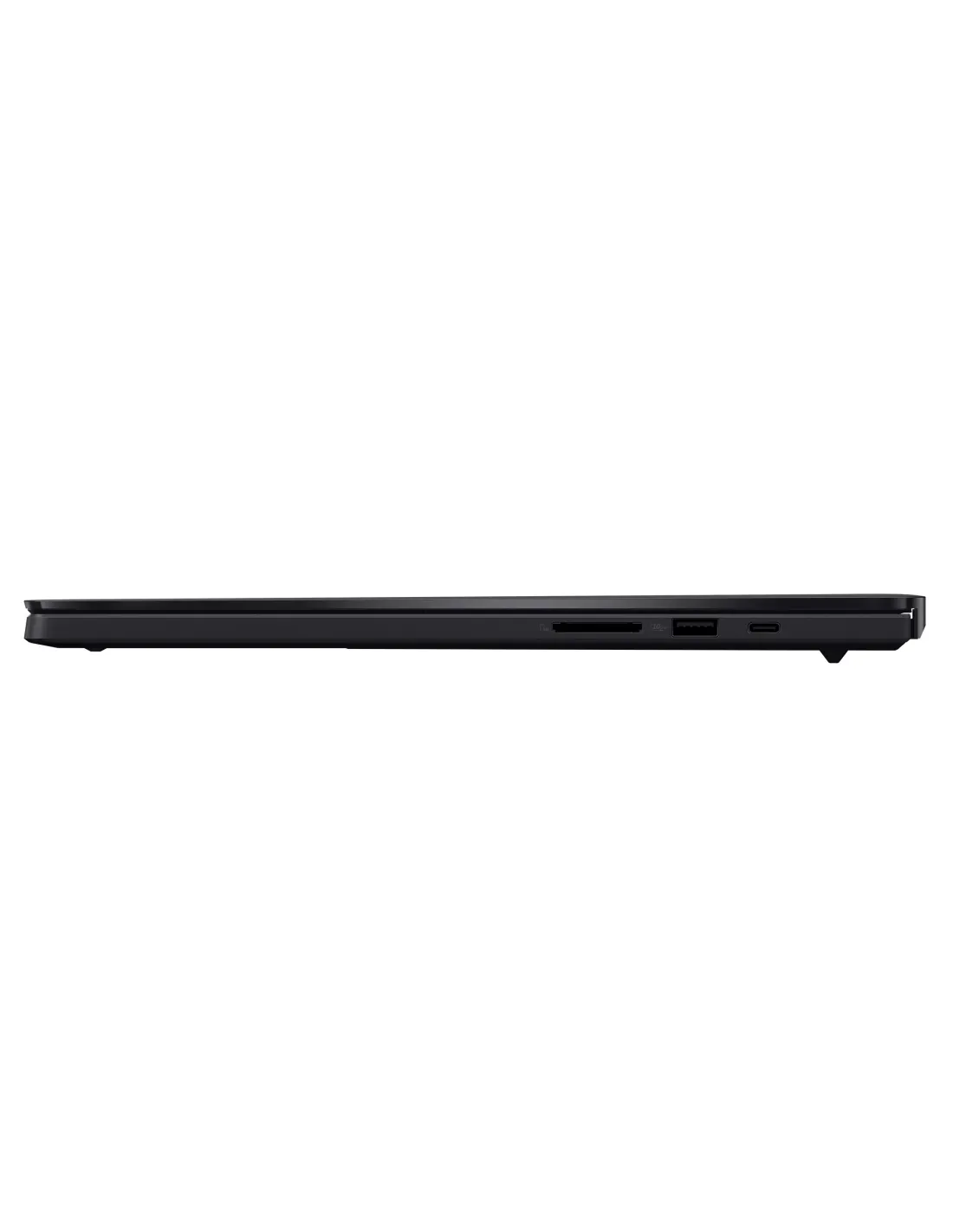

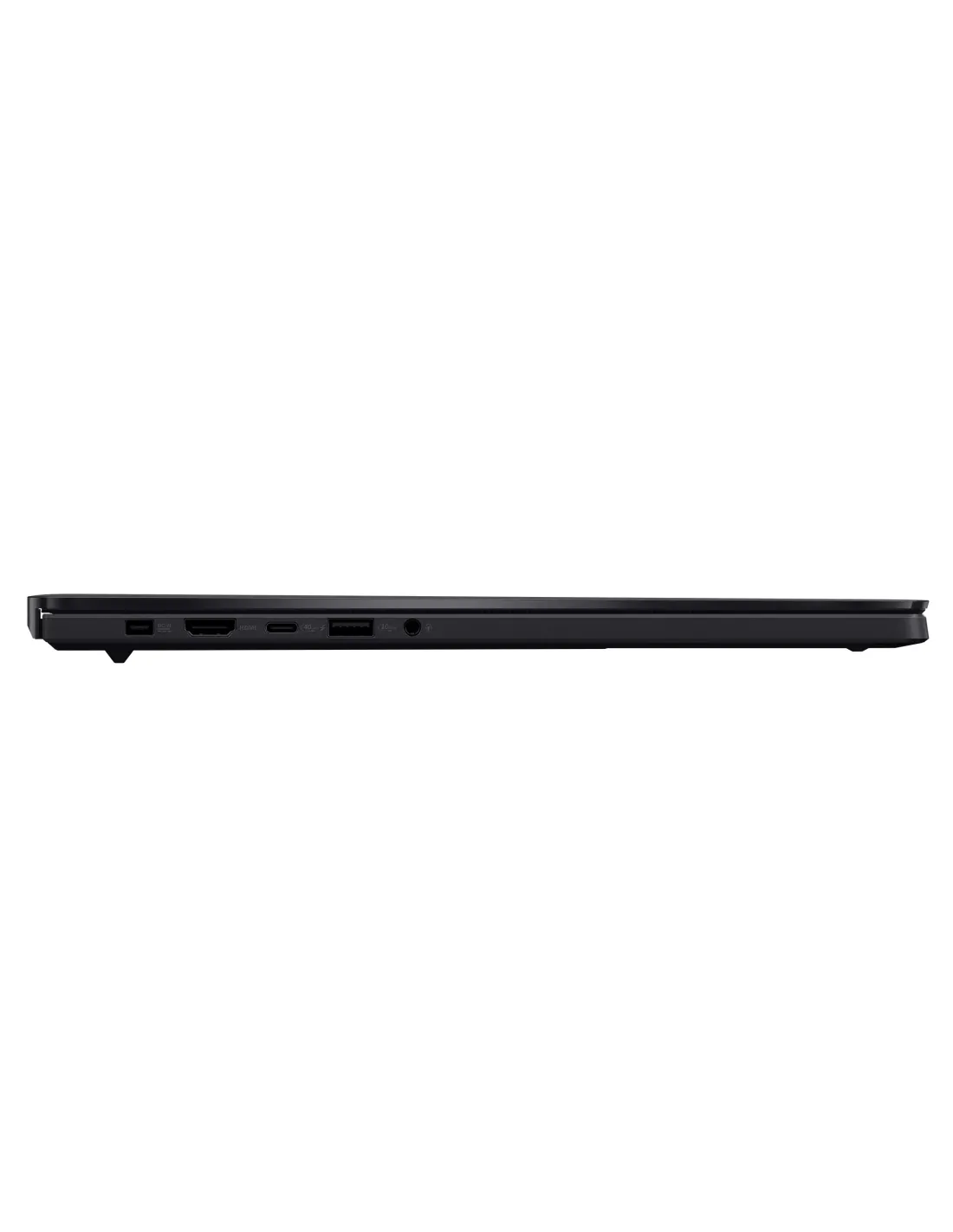

I/O ports
1x USB 3.2 Gen 2 Type-C with support for display / power delivery (data speed
up to 10Gbps)
1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed
up to 40Gbps)
2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)
1x HDMI 2.1 FRL
1x 3.5mm Combo Audio Jack
1x DC-in
SD Express 7.0 card reader
Audio: Smart Amp Technology, Built-in speaker, Built-in array microphone
Power Rectangle Conn, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input:
100~240V AC 50/60Hz universal
Required charging power Min: 45W
Max: 100W
Battery 90WHrs, 4S1P, 4-cell Li-ion
Dimension (W x H x D) 35.49 x 24.69 x 1.49 ~ 1.83 cm (13.97" x 9.72" x 0.59" ~ 0.72")
Weight (with Battery) 1.98 kg
Weight (without Battery) 1.95 kg
Security: IR webcam with Windows Hello support, Microsoft Pluton security processor, Trusted Platform Module (Firmware TPM)
MyASUS feature: System diagnosis, Battery health charging,Fan Profile, Splendid, Function key lock, WiFi SmartConnect, TaskFirst, Live update, ASUS OLED Care, AI Noise Canceling, AdaptiveLock, ASUS OLED Care (screensaver)
Built-in Apps: ASUS Recovery, CapCut, MuseTree, StoryCube, MyASUS, ProArt Creator Hub, ScreenXpert, GlideX.
