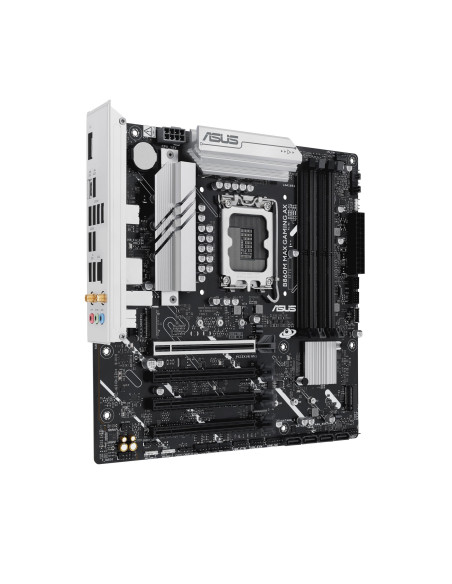

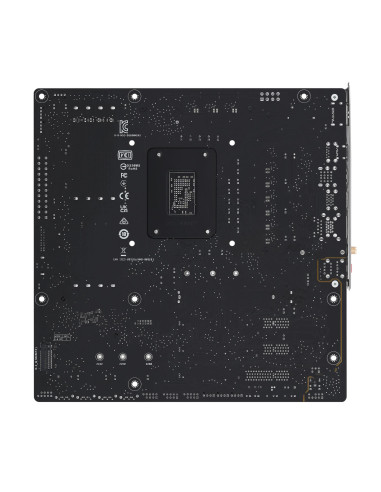

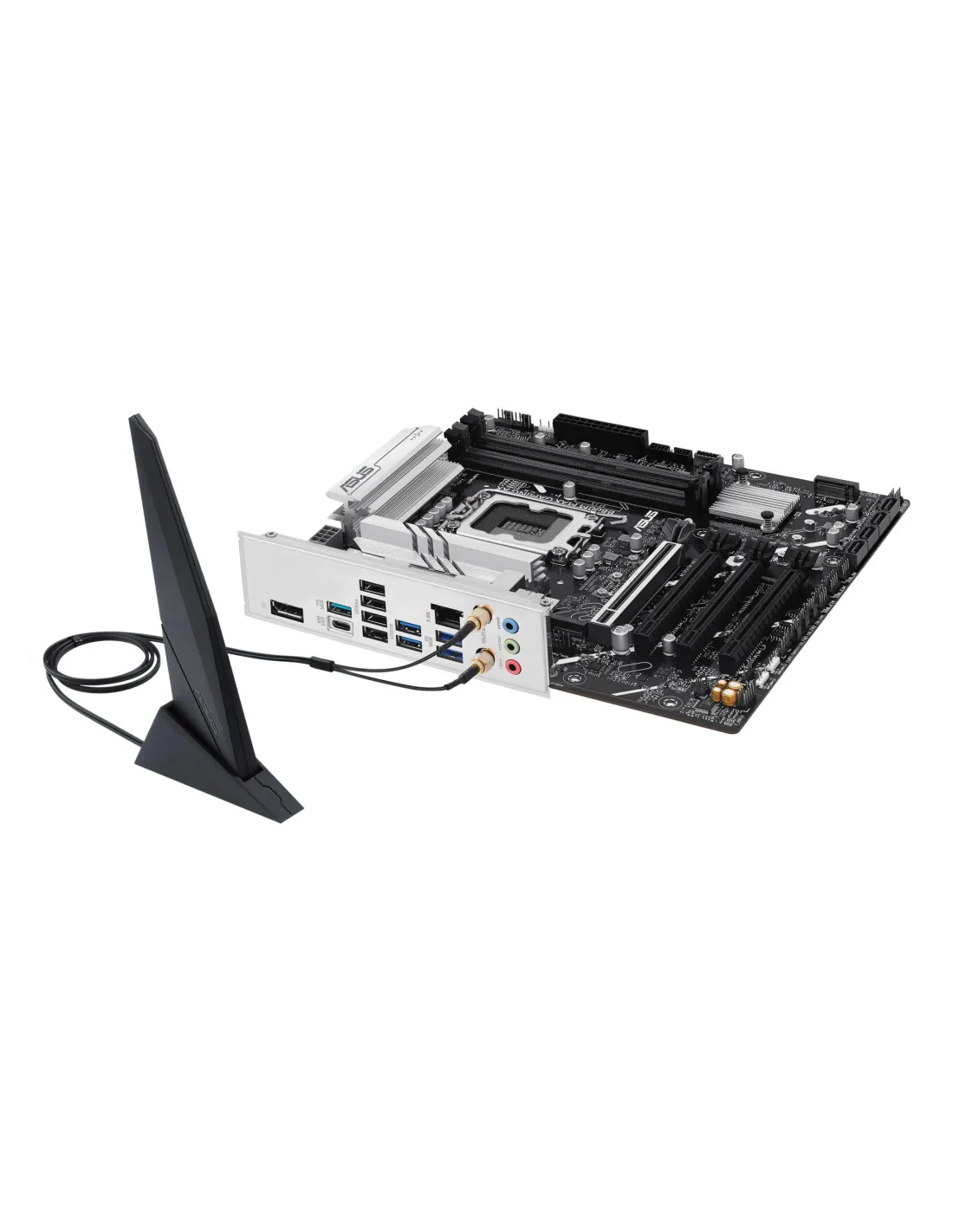

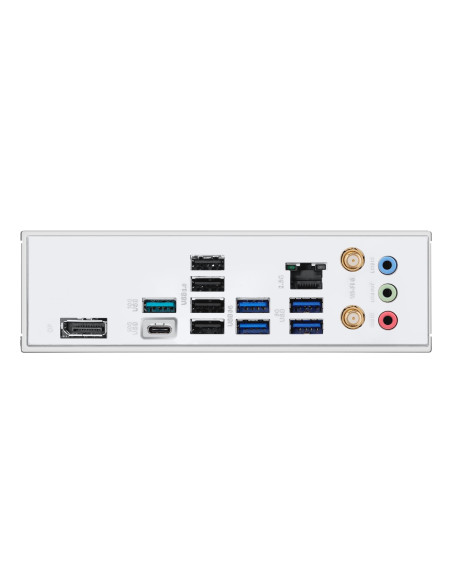

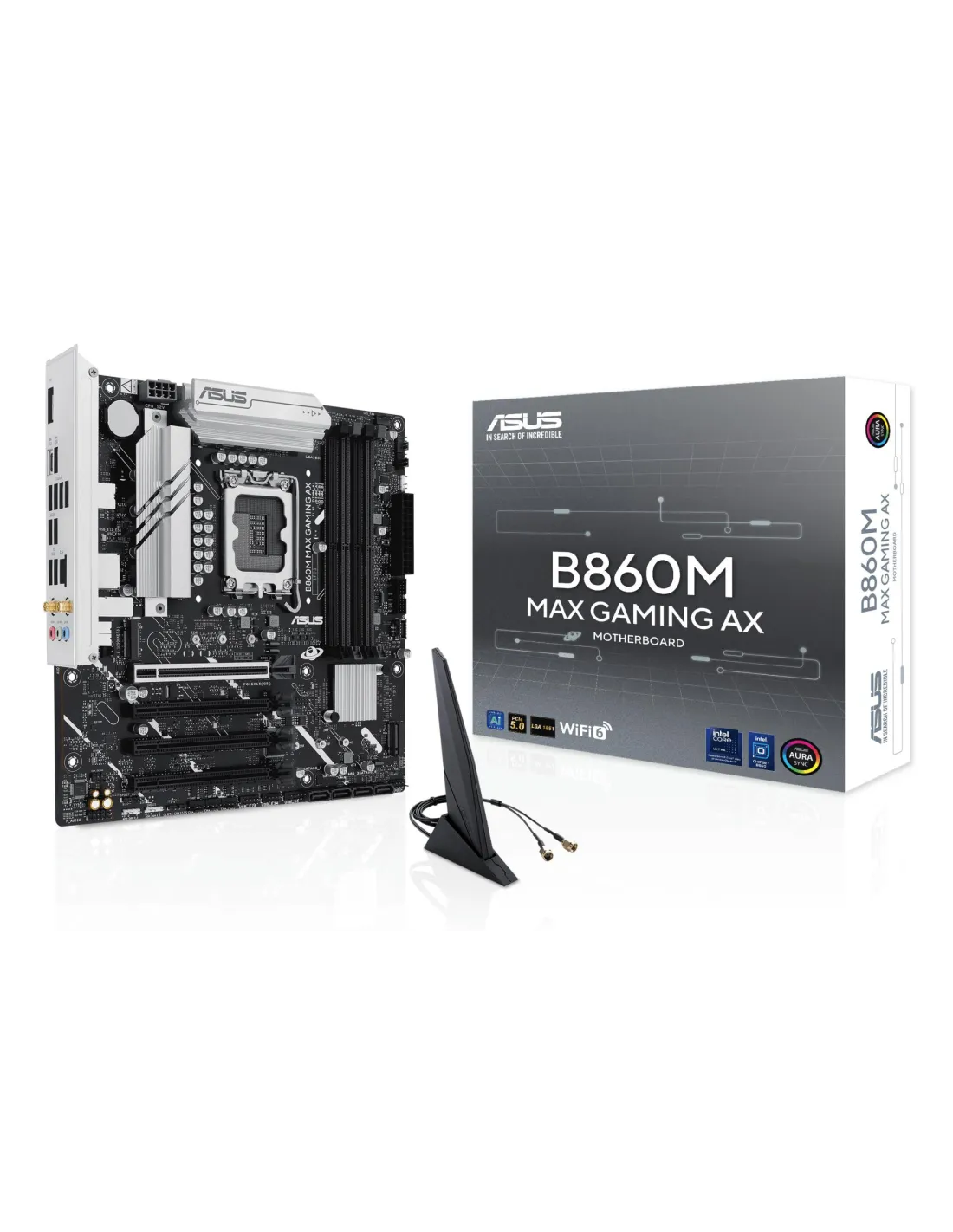

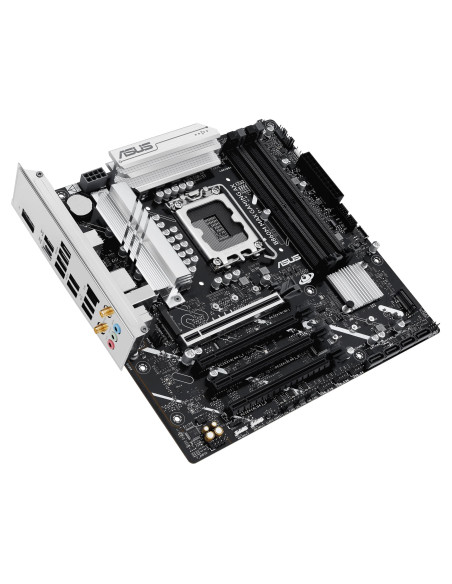

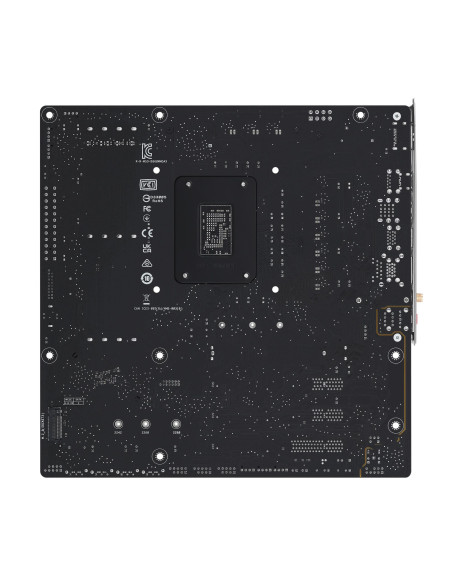

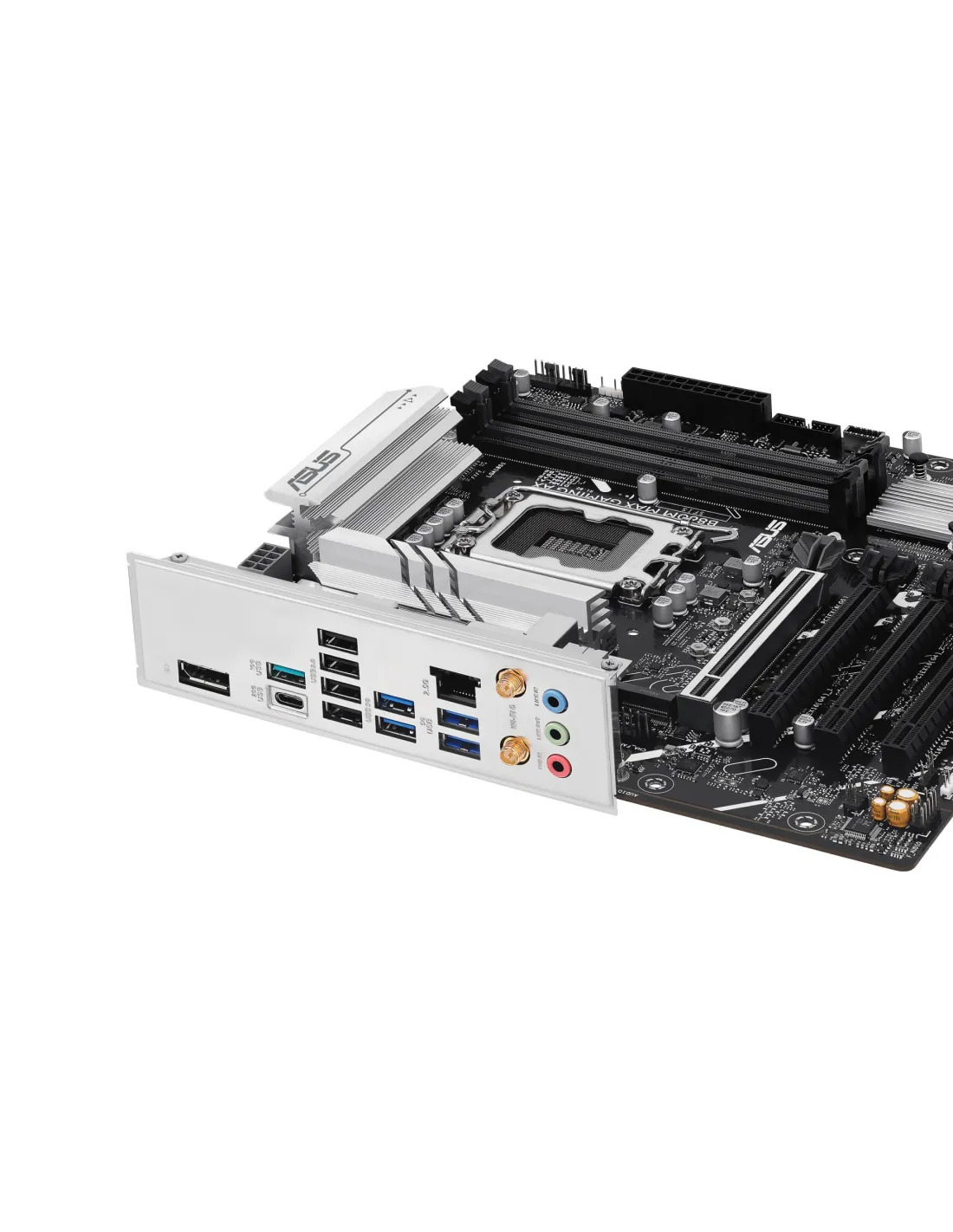

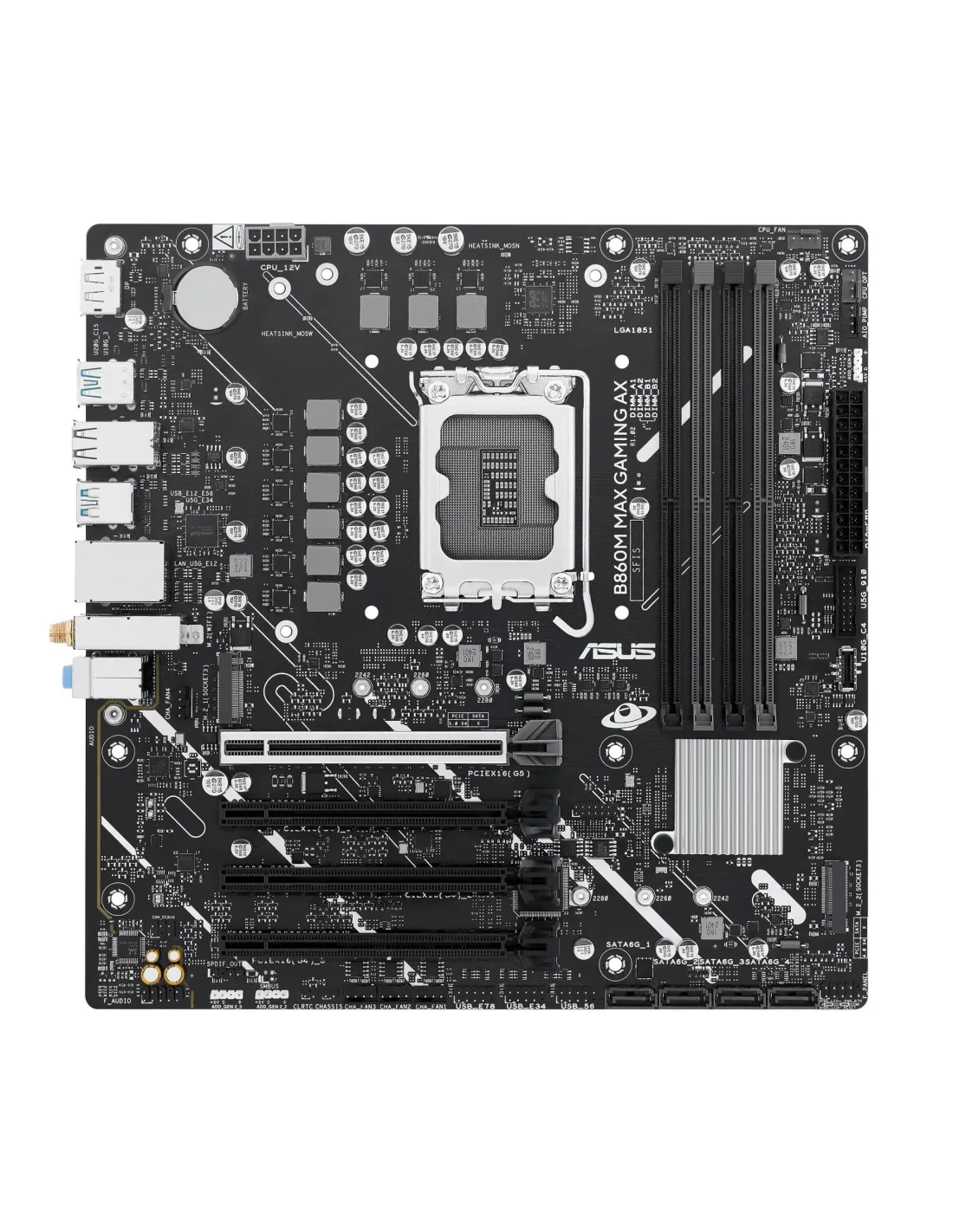

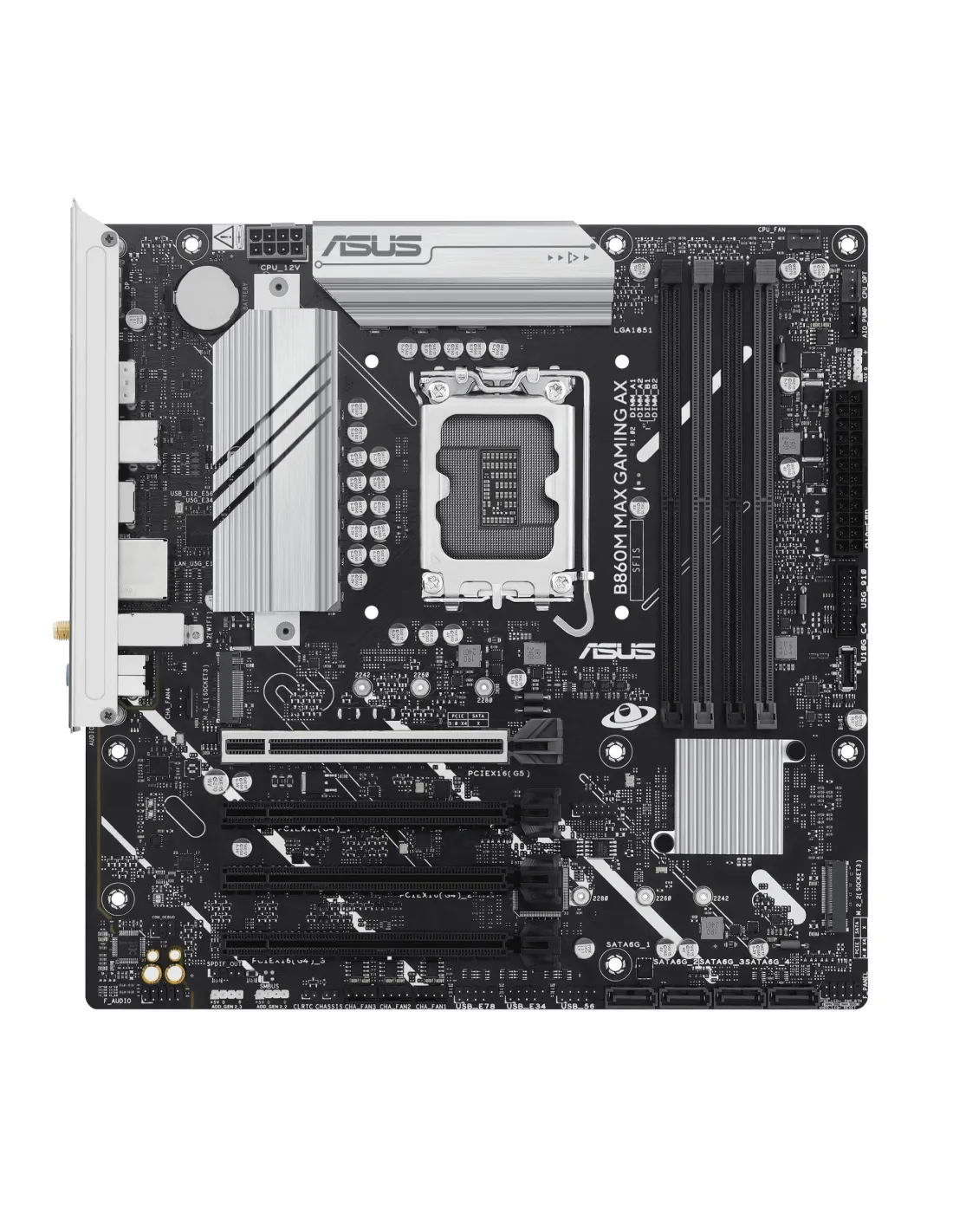

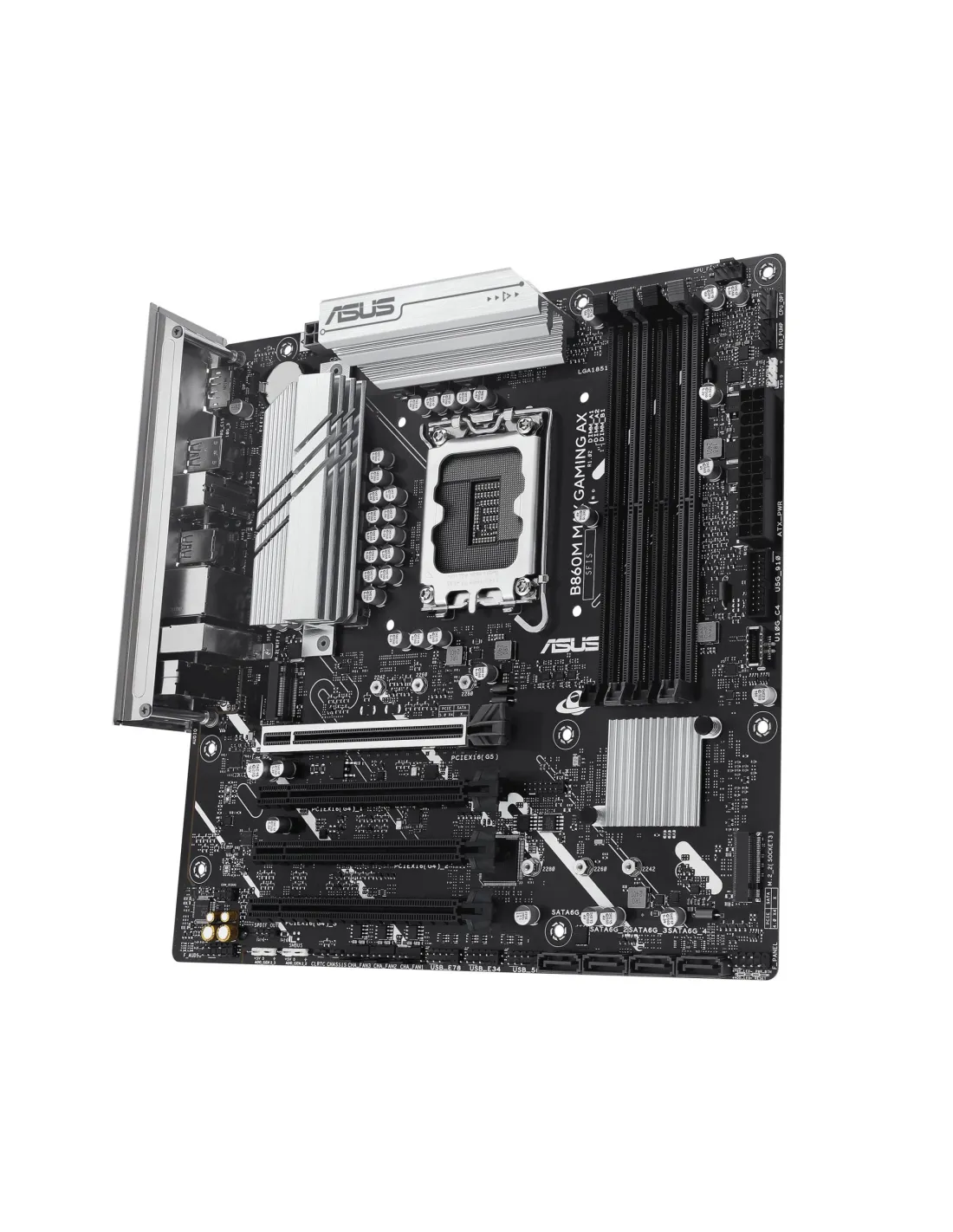

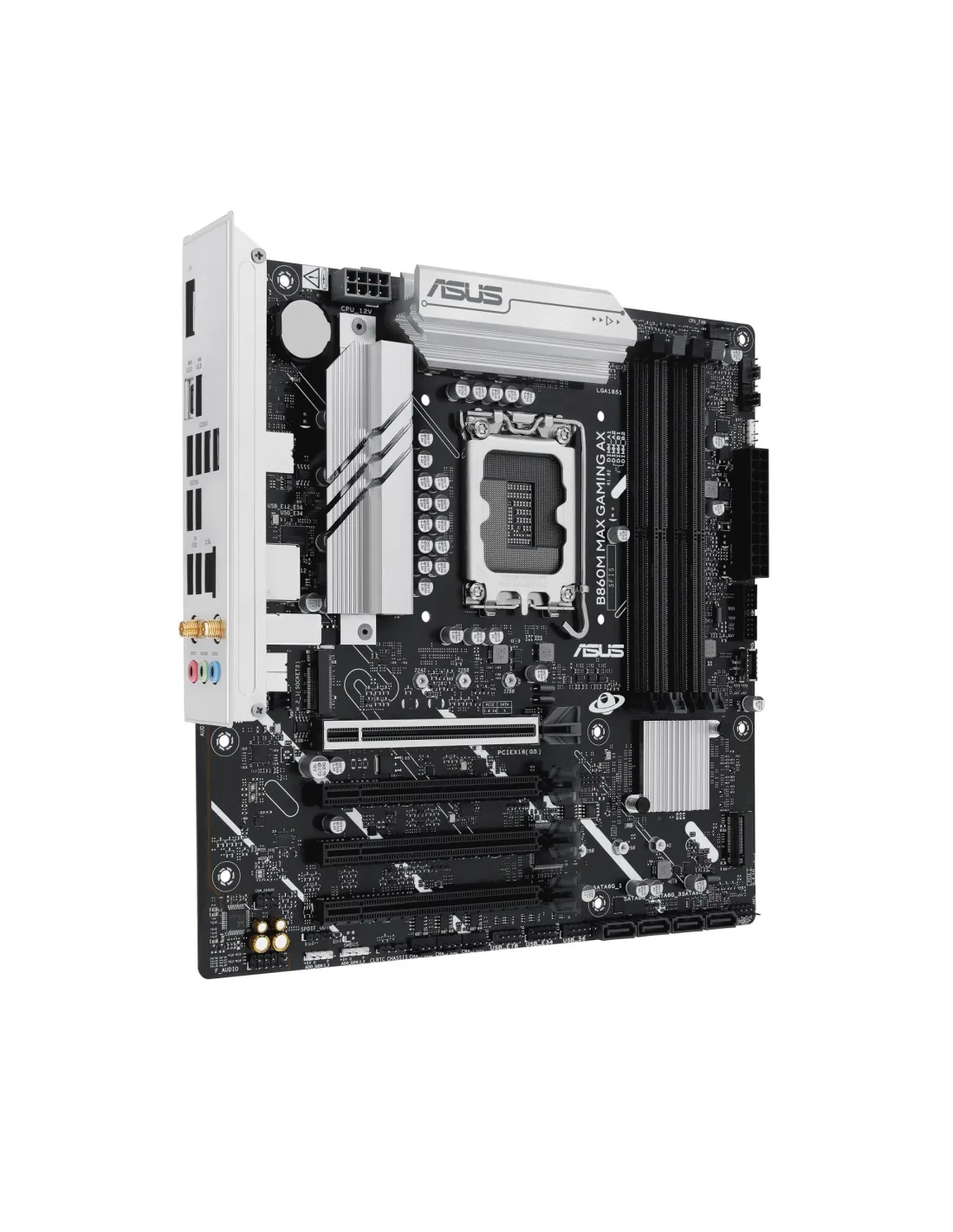

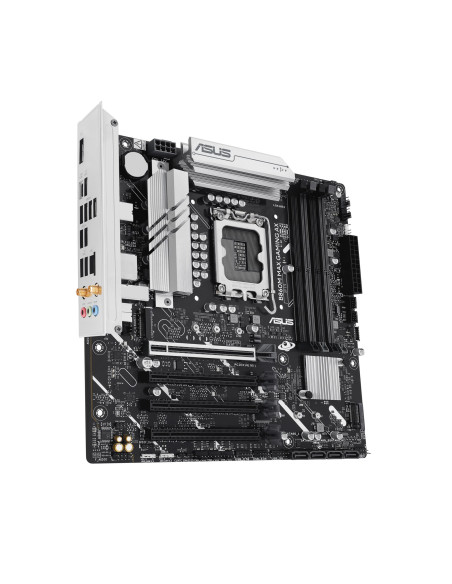

Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, B860MMAXGAMINGAX

Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, B860MMAXGAMINGAX

Name: Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, B860MMAXGAMINGAX
Brand: ASUS
SKU: B860M MAX GAMING AX
Price: 174.08 EUR
Availability: InStock

Kodas B860M MAX GAMING AX

Yra sandėlyje

174,08 €

Su mokesčiais Pristatoma per 2-3 darbo dienas

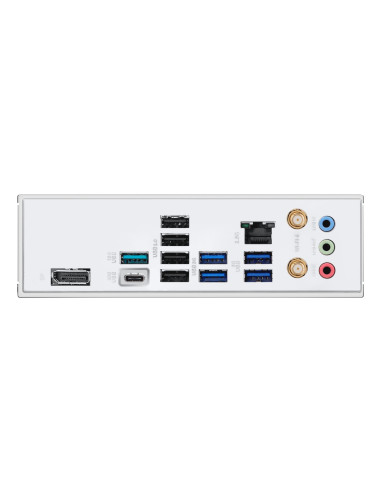

Intel B860 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces PCI Express 4.0,PCI Express 5.0 , 3840 x 2160 pixels , 4xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASUS B860M MAX GAMING AX. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2). SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 256 GB, MEMORY SLOTS TYPE: DIMM. SUPPOR
CATEGORY CODE: MBI
„BLUETOOTH“ VERSIJA: 5.3
CNCODE: 84733020
UNIT BOX HEIGHT: 0.068
UNIT BOX LENGTH: 0.279
UNIT BOX WIDTH: 0.275
WI-FI: Yes
PRODUCT COLOUR: GREY
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11
ILGIS, MM: 244
PLOTIS, MM: 244
CABLES INCLUDED: SATA
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.0061551
ETHERNET LAN: YES
UNIT CALCULATED WEIGHT, KG: 1.435
MODEL: B860M MAX GAMING AX
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
ETHERNET LAN (RJ-45) PORTS: 1
BLUETOOTH: YES
MAXIMUM RESOLUTION, PIXELS: 3840 X 2160
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
COOLING TYPE: PASSIVE
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 7
NUMBER OF HDDS SUPPORTED: 4
USB 2.0 PORTS QUANTITY: 4
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
PROCESSOR MANUFACTURER: Intel
MAXIMUM INTERNAL MEMORY, GB: 256
MEMORY CHANNELS: DUAL-CHANNEL
TOP WI-FI STANDARD: WI-FI 6 (802.11AX)
WI-FI STANDARDS: WI-FI 6 (802.11AX)
MOTHERBOARD CHIPSET: INTEL B860
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MEMORY SLOTS TYPE: DIMM
COMPONENT FOR: PC
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
POWER SOURCE TYPE: ATX
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
SUPPORTED PROCESSOR SOCKETS: LGA 1851
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10/5
RAID SUPPORT: YES
SUPPORTED STORAGE DRIVE INTERFACES: PCI EXPRESS 4.0,PCI EXPRESS 5.0
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
FRONT PANEL CONNECTOR: YES
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 3
RGB LED PIN HEADER: YES
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
WIFI-AP ANTENNA JACK: 2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 3
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
ANTENNA INCLUDED: YES
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8666
CHASSIS INTRUSION CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF WATER PUMP CONNECTORS: 1
TPM CONNECTOR: YES
LINE-IN: YES
QUICK INSTALLATION GUIDE: YES
SCREWS INCLUDED: YES
S/PDIF OUT CONNECTOR: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64

Gamintojas ASUS

Turime Lietuvoje 2 Prekės

ean13 4711387831694

Nėra atsiliepimų
